Safely and Easily Remove Brake Anchor Pins and Bushings at the Same Time on Most 16-1/2″ S-Cam Trailer and Tractor “Q” Brake Systems Found on Class 6-8 Trucks and Equipment.

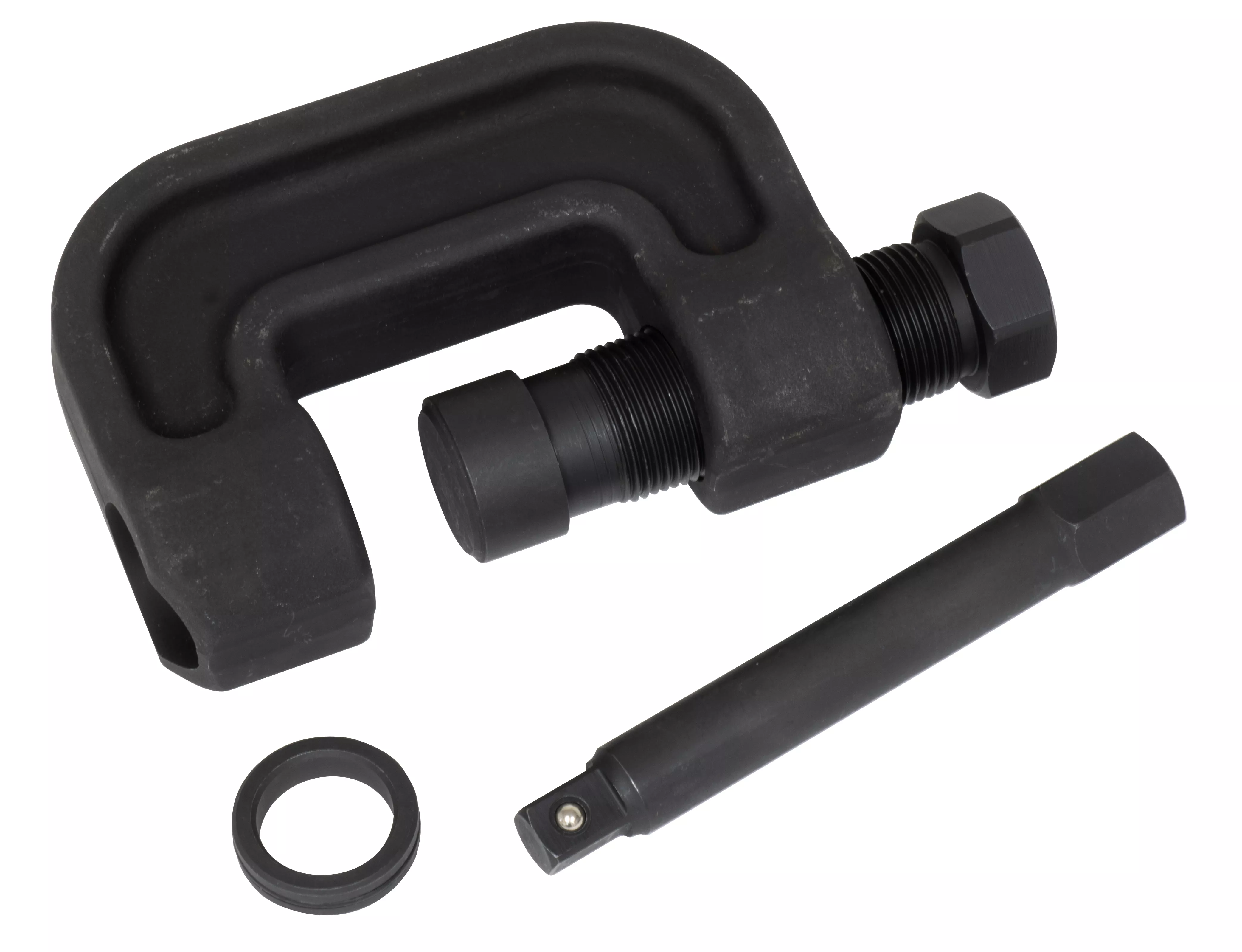

Rigid c-frame manufactured from high-grade steel for strength and durability with a 10-ton capacity. The 5-3/4″ extension enables use without removing the hub and dust shield. 1-7/16″ Hex drive on pusher rod and 13/16″ hex drive on extension.
| Part | Description |
|---|---|
| 30030 | Extension |
| 30040 | Pusher Rod End Cap |
| 30060 | Pin Press Spacer with O-Ring |
| 30070 | Pin Press Pusher Rod |
| 30080 | Pin Press Body |
