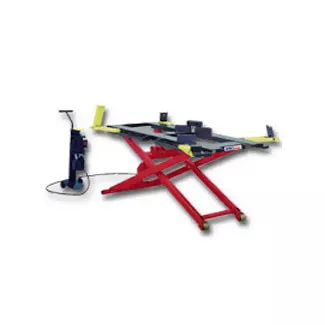

6,000 lb. Mid Rise Scissor Lift

Features and Benefits: Heavy duty 6,000 lb. (2700 kg) capacity Portable with rolling power cart – easy to maneuver -expands service flexibility Compact drive-over height handles more vehicles Starts low 5 (127mm) – uses less space 36 x 75 (915mm x 1905mm) Lifts straight up with no fore or aft movement to optimize space and improve stability 39-1/2 (1003mm) lifting height provides comfortable working height for tire and brake work Frame contact with adjustable lifting arms and flip-up pads Pad style application with rubber lift blocks Dual safety system includes mechanical lock device and velocity fuse Proven electric power pack – 115V, 60 Hz, 1 phase power required (other electrical options available) Also available with air operated power pack – 100 PSI (689kPa) air outlet required 12 feet (3.65 meters) of hydraulic hose with quick disconnect standard equipment Maximum capacity: 6,000 lbs. Overall length: 75-1/2″ Overall width: 38 Fully extended length: 98 Fully extended width: 68-1/2 Max. raised height: 39-1/2 Min. lowered height: 5 Lifting time: 30 Sec. Power requirements: Electric model (standard): 115 V AC – 60 Hz – 1Ph – 20 AMP Air operated model: 100 PSI Shipping weight: 950 lbs.
