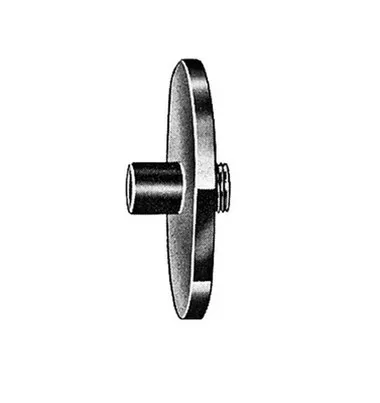

Dotco 14-2412 Router Guide For Router Bits with 1/4″ Shank Bit

Built for guided routing with compatible Dotco pneumatic routers, the Dotco 14-2412 Router Guide is used with 1/4″ shank router bits to help maintain controlled movement during trimming and edge-finishing work. This accessory supports cleaner routing paths when accuracy and repeatability matter on suitable workpieces.

The 14-2412 is a router guide accessory only and is not a complete router or cutting bit. It is commonly used in composite fabrication, aerospace production, woodworking, laminate trimming, and general fabrication where guided router control helps produce consistent results.

Type: Router Guide | Model: 14-2412 | Compatible Bit Shank: 1/4″ | Application: Router Bit Guidance

Important: Insert the bit into the collet as far as possible, then pull out 1/16″ and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4″, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Guided trimming of composite panels and fabricated parts.
• Edge finishing for aerospace components and production assemblies.
• Woodworking and laminate routing with compatible 1/4″ shank bits.
• General shop routing where controlled tool guidance improves consistency.

FAQs:

• Q: What bit shank size does the Dotco 14-2412 router guide fit?A: This router guide is listed for router bits with a 1/4″ shank.
• Q: Does the 14-2412 include a router bit?A: No. This SKU is for the router guide accessory only unless the product page or order details state otherwise.
• Q: Where is a router guide useful?A: A router guide is useful when the operator needs steadier control during trimming, edge routing, or finishing work on compatible materials.
