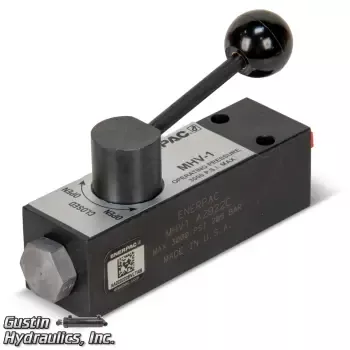

Model: MHV1 | Series: MH | Product Line: Workholding Tools
- Allows separate operation of clamping fixtures with a single power source
- Ideal for applications when fluid feed lines are impractical. If system pressure is interrupted, the MHV1 will hold the pressure beyond the valve
- Max. oil flow 305 in3/min
- To release system pressure, rotate valve handle in either direction 90 ? to release and retract system pressure
- Used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety
- Regulate oil flow or system pressure
- All valves feature NPT or SAE porting to insure against leakage at rated pressure
- Can easily be installed in any system
- All valves are painted, coated or plated for corrosion resistance
Modular Holding Valve
