Model: V66 | Series: V | Product Line: Industrial Tools

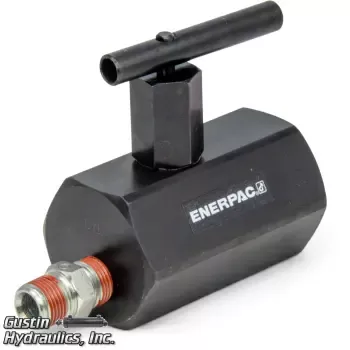

V66, V66NV: Manually Operated Check Valves include a built-in relief valve. They allow the operator to switch the direction of the fluid quickly, making it suitable for load holding applications with single and double-acting cylinders. The V66NV model features Viton seals and a Nickel-plating for enhanced resistance to corrosion.
- For use with single and double-acting cylinders for load holding applications.
- With valve closed, V-66 checks pressure as oil flows through while cylinder advances.
- V-66 holds load until opened and the cylinder can retract and oil flows back to tank.
- Built-in relief valve set at 11,500 psi (790 Bar) 3/8″ NPT connections – (1) male (1) female
