Description

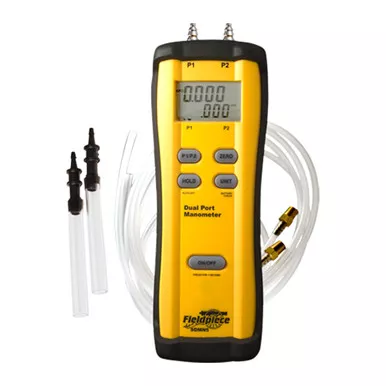

Fieldpiece SDMN5 Dual-Port Manometer
The SDMN5 is a portable, rugged dual-port manometer designed especially for HVAC/R field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16to 5/16adapter for measuring gas inlet and outlet pressures.
The SDMN5 evolved as a result of testing pressures in the field for 20 years.Its range and resolution allow you to measure the HVAC applications you run into everyday in HVAC/R field service.Measure gas pressure on the inlet and outlets with the standard 3/16fittings or the included adapters for 5/16ports, take static pressure measurements across a blower and get the pressure differential with the push of a button to check drafts.Whether you re holding the ergonomic standalone shape in your hand or hang the SDMN5 on the unit with the magnetic hanger to fill out a work order, the SDMN5 make HVAC/R field service easier and faster, with less fatigue than the other guys.
Specs
General
| Accuracy: | Stated accuracy at 0 to 50°C (32 to 122°F): ±1.5% FS |
| Battery: | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22. |
| Battery Life: | 200 hours with low battery indicator on display. |
| Operating environment: | 32°F (0°C) to 122°F (50°C) |
| Compatible Media: | Dry, non-corrosive gases |
| Over range: | “OL” or “-OL” is displayed. |
| Auto-Off power: | 15 minutes |
| Low Battery: | Symbol is displayed |
| Dimensions: | 180mm(~7 1/16″)(H) x 60mm(~2 3/8″)(W) x 30mm(~1 3/16″)(D) |
| Weight: | approximately 195g (~1/2 pound) including battery |
Pressure:
| Pressure Ports: | Tube connectors for 5mm (~3/16 inch) I.D. flexible tubing |
| Units of Measure: | inWC, mmWC, mbar, PSI |
| Resolution: | 0.01 inch WC (0.1mmWC, 0.01mBar) |
| Accuracy: | ±1.5% FS |
| Measurement Range: | In WC: 0.00 to ±60.0 mm WC: 0.0 to ± 1500 mBar: 0.00 to ±150.0 PSI: 0.000 to ±2.000 |
