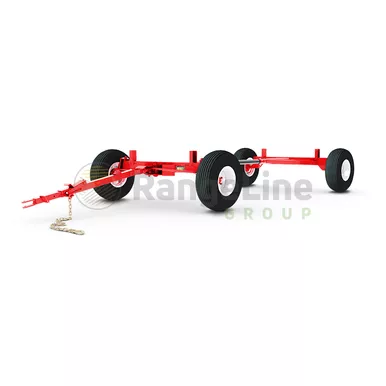

Horst 8 Ton Running Gear, Less Wheels and Reach

Horst 8 Ton Running Gear, Less Wheels and Reach. 8 ton wagon gear, Quick hitch tongue, Standard reach length 6′ 7″, Wheelbase adjustable 7′-11′, Safety chain (3/8″ GR. 70).Optional 10′ reach length (Wheelbase adj. 11′ to 14′)High clearance option (6″ increase – refer to specification page 50)Narrow track (Custom Build) down to 60″ (stake posts may ship loose)Wide track (Custom Build) up to 90″Single Spring Balancer4″ bolt on riser kit (other heights available)Capacity (30 kph / 20 mph): 16,000 lbCapacity (50 kph / 30 mph): 12,000 lbSpindles: 1-3/4″ Diameter, C1045 Hot RolledHubs: 6 BoltBearings – Bore Size (Inner/Outer): Taper Roller (1.50 / 1.25)Front Axle : 5.5 x 3 x .188 WallRear Axle: 5.5 x 3 x .188 WallTongue Bracket Mounting: 1-1/2″ Bolt Bearing Mtd.Tongue Bolt: 7/8″ DiameterTongue Latch: Retractable Automatic RelockReach Poles: 3″ O.D. x .188 Wall – Round TubeBolster Stakes: Adjustable 38.5″ – 40.5″ – 42.5″Steering: Automotive TypeTie Rod Ends: Greasable Automotive Style Ball JointsWheelbase: AdjustableHeight From Ground To Top of Bunk: 24″ (on 11L x 15 Tires) Approx. Weight:535 lbs. (less rims and tires)
