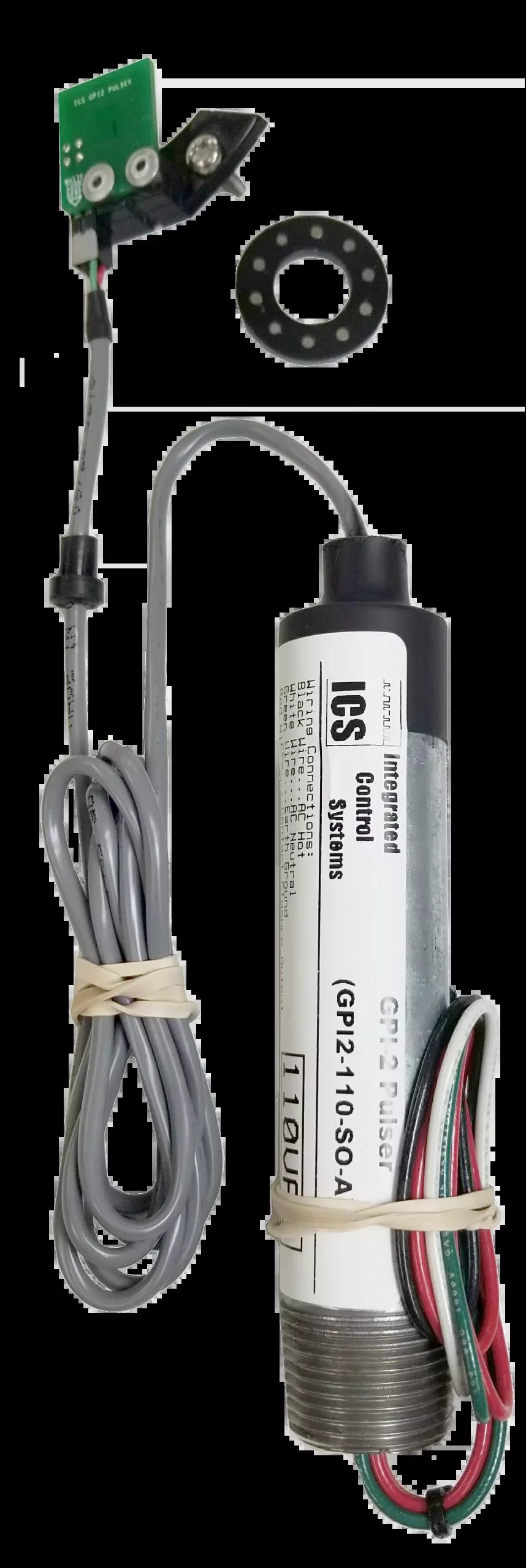

| GPI2 PULSER SPECIFICATIONS | |
| INPUT Specifications | |
| Wire Color | Black (110vac), Orange (12vdc) |
| Operating Voltage | 12VDC (GPI1-12-SO or GPI1-12-DO)
120VAC (GPI1-110-SO or GPI1-110-DO) |
| Operating Temperature | -40 to +150 degrees F |
| Maximum Speed | 30 GPM |
| OUTPUT Specifications | |
| Wire Color | Red wires |
| Switching Voltage | 5 to 300 Volts AC or DC |
| Maximum Current | 300 mA |
| On Resistance | 25-35 Ohms |
