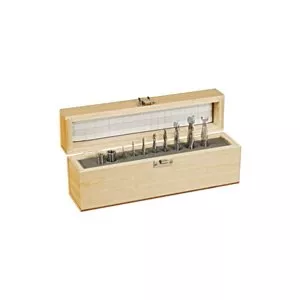

The 1608C set includes all the bits you’ll need to make finger joints with the Leigh F3 Finger Joint Template. The 3/32″ bit is single flute and the rest are double flute. Each set includes one 5/16″(8mm) to 1/2″ and one 3/8″ to 1/2″ collet adapter sleeve.
| Leigh | Type | Material | Diameter | Depth | Shank |
|---|---|---|---|---|---|
| 163 | Straight – Single | HSS | 3/32″ | 3/8″ | 1/4″ |
| 164C | Spiral Upcut – Double | Solid Carbide | 1/8″ | 1/2″ | 1/4″ |
| 165C | Spiral Upcut – Double | Solid Carbide | 5/32″ | 5/8″ | 1/4″ |
| 166C | Spiral Upcut – Double | Solid Carbide | 3/16″ | 3/4″ | 1/4″ |
| 168C | Spiral Upcut – Double | Solid Carbide | 1/4″ | 1-1/8″ | 1/4″ |
| 170C | Spiral Upcut – Double | Solid Carbide | 5/16″ | 1-1/8″ | 5/16″ |
| 173C | Spiral Upcut – Double | Solid Carbide | 3/8″ | 1-1/8″ | 3/8″ |
| 180C | Spiral Upcut – Double | Solid Carbide | 1/2″ | 1-5/8″ | 1/2″ |
