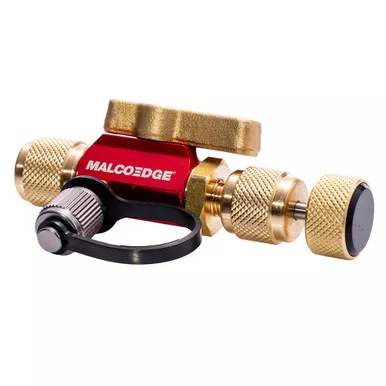

MalcoEdge CRT3 Valve Core Removal Tool 5/16″
Optimized for Mini-Splits and Hard-to-Reach Service Ports
The MalcoEdge CRT3 Core Removal Tool is designed specifically for systems equipped with 5/16″ service ports, including many modern mini-splits and ductless HVAC applications. By allowing technicians to remove valve cores during evacuation and recovery, the CRT3 helps maximize flow and reduce service times. Its compact design fits into tight access locations, while the magnetic capture rod knob keeps the tool accessible by securing to nearby metal surfaces during use. Vacuum-rated to 20 microns and pressure-rated to 800 psi, the CRT3 combines compact size with dependable field performance.
Key Features & Benefits
- Connects directly to 5/16″ service ports commonly found on mini-split systems
- Removes valve cores to increase flow during evacuation and recovery
- Compact body fits into tight service areas where larger tools cannot reach
- Magnetic capture rod knob secures to nearby metal surfaces for convenient access
- Dedicated accessory port for vacuum gauges and additional service connections
- Vacuum rated to 20 microns for deep evacuation applications
- Maximum working pressure of 800 psi
- Lightweight construction for everyday field service
- Compatible with A2L and A3 refrigerant service procedures
Specs
| Connection Sizes | 5/16″ F x 1/4″ M x 1/4″ M |
| Vacuum Rating | 20 Microns |
| Maximum Working Pressure | 800 psi |
| Material | Anodized Aluminum Body with Brass Fittings |
