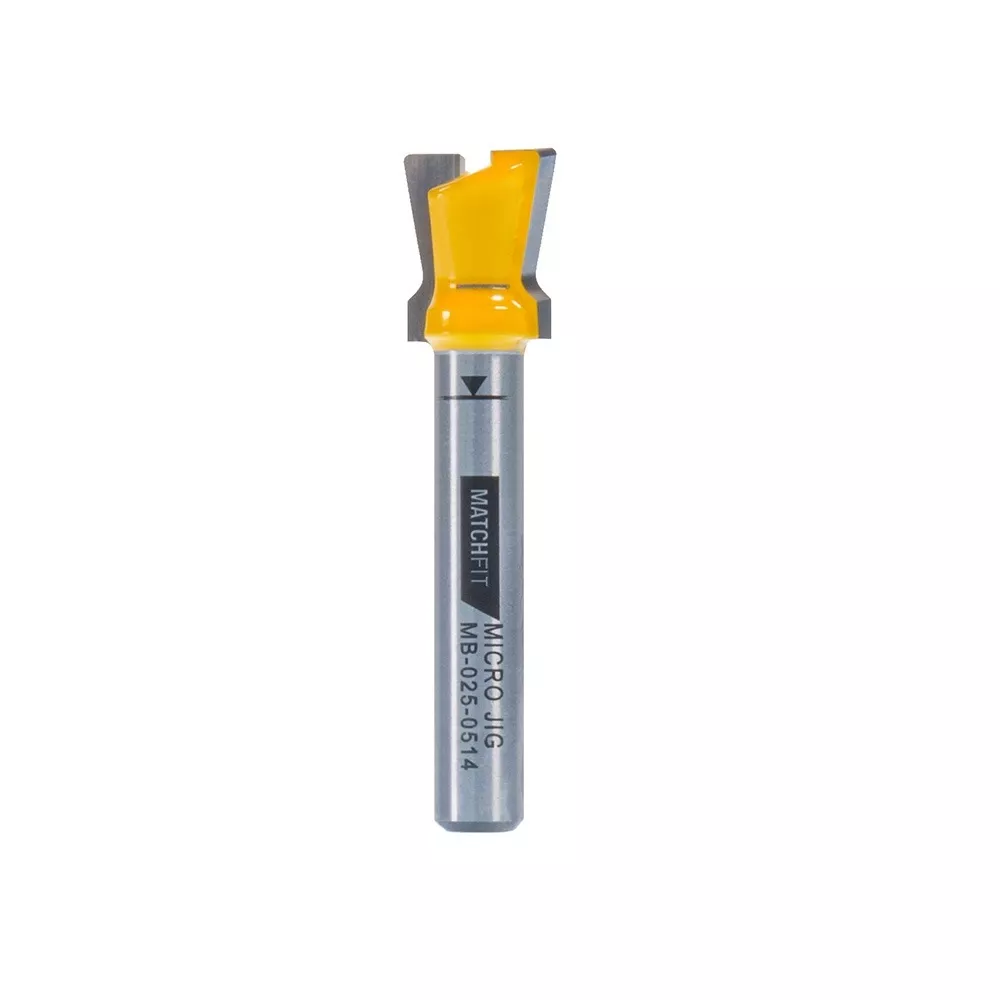

This MatchFit Dovetail Router Bit is designed specifically to create tracks that fit MatchFit Dovetail Clamps (61047, sold separately). Its 1/2” x 14° cut with unique rounded corners forms a durable track profile and minimizes splintering. The rounded corners at the narrow end of the profile also provide a wider tolerance range—the bit can be set to a depth ranging from 0.365” to 0.385” and still be fully compatible with MatchFit dovetail products. Within that range, the width of the groove at the surface of the material will remain the same but with varying degrees of roundover.
Micro Jig MatchFit Dovetail Router Bit – 1/4” Shank Details:
- Rout incredibly clean dovetail grooves that require less sanding—ideal for installing MatchFit Dovetail Clamps (61047, sold separately)
- 8° downshear design evacuates chips and dust to reduce friction and heat for cleaner cuts
- 1/2” x 14° profile with rounded corners for smoother dovetail tracks
- Router collet safety line prevents bit from bottoming out in collet during installation
- Laser-etched depth guide helps you quickly set a 3/8” cutting depth
- Extended-length shank provides more surface area for the collet to grip securely
- Wide base profile reduces vibration and noise for smoother cuts
