Description

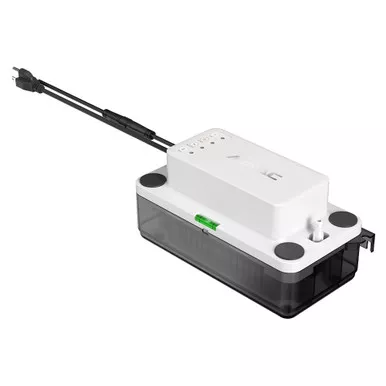

NAVAC NCT145 Condensate Tank Pump
Smart, automatic condensate management
The NCT145 Tank Pump provides smart, automatic condensate management with reliable performance and easy maintenance for HVAC systems. Powered by a durable centrifugal pump and brushless DC motor, it delivers a maximum lift of 23 feet and handles condensate temperatures up to 160°F. A built-in water-level safety sensor with overflow protection ensures safe operation, while the 1/2-gallon translucent tank allows quick inspection and improved efficiency. Featuring automatic self-cleaning, a manual drain, LED status indicators, and a 3/8″ OD discharge port with a built-in check valve, the NCT145 is a homeowner’s ideal condensate management solution for ducted systems, while remaining easy for technicians to install, service, and maintain.
Key Features & Benefits
- Automatic condensate collection
- Durable centrifugal pump
- 23 ft maximum lift
- Brushless DC motor
- Rated for condensate water up to 160°F
- Built-in water level safety sensor
- Highly reliable electrode sensor
- Three-piece sensor for overflow protection
- Automatic self-cleaning function
- Manual drain for forced discharge
- 4 indicator lights for quick status check
- Built-in level for easy installation
- Snap-on/off cover
- Detachable 3-conductor power cable and 2-conductor signal cable
- Cleanable built-in filter
- 1/2-gallon translucent water tank for fast inspection
- Minimizes runtime extending life and saving energy
- Four 1″ inlet openings with 3 poly covers
- 3/8″ OD discharge port with built-in check valve
Specs
| NCT145 Pump Specs | |
|---|---|
| Flow Rate | 145 GPH |
| Max Lift | 23 Feet |
| Tank Capacity | 0.5 Gallon |
| Noise at 1m | 45 dB |
| Power | 100-240V / 50-60 Hz |
| Included Accessories | 3 cable ties, Detachable power cable, 16′ water pipe |
