Description

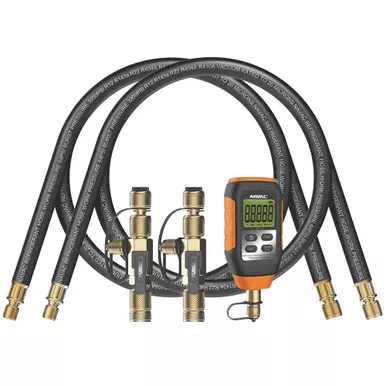

NAVAC NEVK3 Rapid Evacuation Kit with Hoses, Core Tools, and Micron Gauge
Leading Technology, Superior Quality, Best Experience.
Big Boy High-Flow Evacuation Hoses, 6′ Long
- 1/2″ large diameter for fast evacuation
- 3200 psi burst pressure, 640 psi working pressure
- 4-layer construction for low permeation
- Vacuum rated to 20 microns
NVR1 Valve Core Removal Tool
- For use with both 1/4? and 5/16? flare fitting
- Designed for high-pressure refrigerants including R410a
- Metal handle for durability
- Vacuum rated to 20 microns
NMV1 Micron Vacuum Gauge
- High-precision Pirani vacuum sensor
- Large backlit display
- Buzzing alert
- Ergonomic design
- Pouch NOT included
Specs
| NMV1 Vacuum Gauge Specifications | |
|---|---|
| Maximum overload pressure | 72 psi |
| Range | 0 ~ 10000 Pa 0 ~ 100 mBar 0 ~ 75 mmHg 0 ~ 75000 microns |
| Resolution | 0.01 (10Pa) 0.0001 (10mBar) 0.0001 (10mmHg) 1 (30000microns) |
| Accuracy | 15 – 750 micron: ±5% of reading (at 68°F) |
| Operating temperature | 32~122°F(0 ~ 50°C) |
| Units | Pa, mBar, mmHg, Microns |
| Sensor | Pirani sensor |
| Buzzer alarm | 90 db, shut down after 10 seconds |
| Weight | 4.5 oz |
| Warranty | 1 year |
