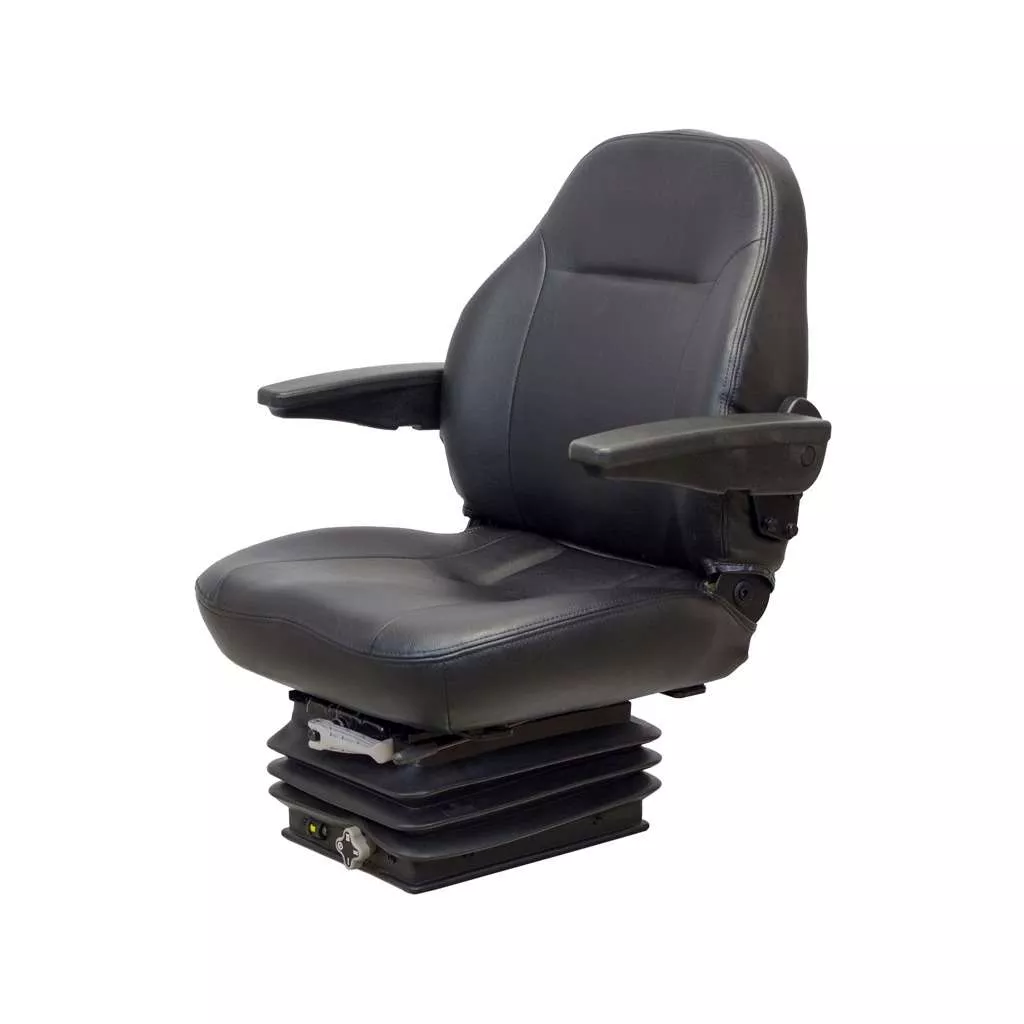

Uni Pro™ – KM 441 Seat Assembly Features:
- Cut and sew black vinyl for a more rugged, comfortable cover
- Vinyl is water-resistant
- Fold-down and adjustable backrest
- 3-position lumbar support
- Durable document pouch stores owner’s manual and other valuables
- Fold-up armrests
- Adjustable slide rails from 6.5″ – 13″ side-to-side for universal fit
- Accepts flange bolt mount operator presence switch
KM MSG83 Mechanical Suspension Features:
- Grammer MSG83 Mechanical Suspension
- Narrow, compact mechanical suspension
- Frame width of 8.92″
- Flip handle weight adjustment
- Front weight indicator
- Three-position height adjustment
- Durable rubber molded suspension cover to keep components free of dirt and dust
Seat & Suspension Kit (PN: 6814) Includes:
- Uni Pro™ – KM 441 Seat Assembly
- KM MSG83 Mechanical Suspension
- Pedestal
- Slide Rails
- Install Hardware
- Installation Instructions
Available Options:
- Seat Belt Bracket Kit necessary with part number: 7911 (PN: 6002)
- Seat Belt Kit (PN: 7911)
- Operator Presence Switch – Normally Open (PN: 8665)
Available Maintenance Item:
- Replacement Armrest Kit (PN: 8025)
- Replacement Flip Handle Kit (PN: 8635)
- Replacement 440/441 Adjustable Slide Rails (PN: 8453)
