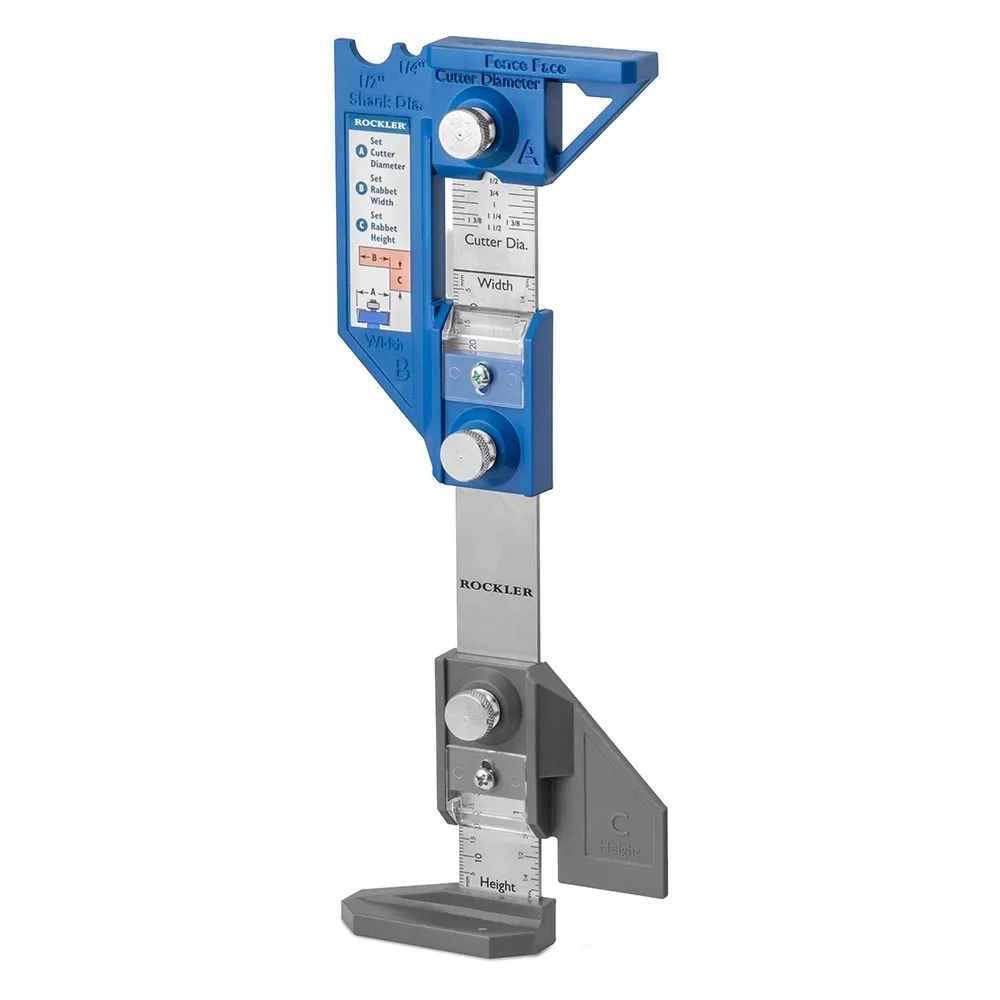

This clever gauge will help you set the fence position and bit height on your router table for making precise rabbet cuts with a rabbeting or straight bit. It also expands the range of rabbets you can make beyond the pilot bit diameters that come with your rabbeting bit. The gauge consists of a stainless-steel rule with durable glass-reinforced plastic components and is clearly marked for easy use.
Setup involves just a few simple steps: Slide indicator A to match the bit’s cutting diameter, then slide indicator B to your desired rabbet width. Slide indicator C to mark the rabbet’s height. Once you’ve installed the bit and fit the shank diameter gauge around the bit’s shank, you can set and lock the router table fence against the gauge’s blue fence, marked ”Fence Face.” Use the gauge’s gray fence to adjust the bit’s height, and your router table is ready to cut!
Rockler Router Table Rabbeting Setup Gauge Details:
- All-in-one gauge simplifies the process of setting up rabbet cuts on a router table
- Expands the range of rabbet cuts you can make with a rabbeting bit by setting it independently of pilot bearing diameters
- Gauge’s three sliding A, B and C indicators are easy to set and lock, then transfer to the router table fence and bit
- Lets you use either rabbeting or straight bits for cutting rabbet joints
- Works with 1/4”- and 1/2”-shank router bits with 1/2”- to 1-1/2”-diameter cutters
- Rabbet width and bit height indicators are adjustable so you can fine-tune the gauge’s settings
- Stainless-steel rule with easy-to-read laser-etched markings
- Durable glass-reinforced plastic components
- Gray fence is also useful for setting blade heights
