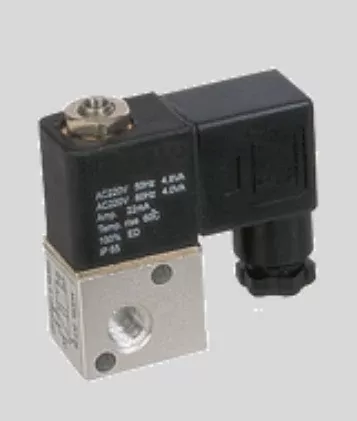

Technical Specifications
General
| Action & Motion | Direct Acting Poppet, Response Time <20ms |
|---|---|
| Cv | 0.23 (2-Way), 0.05 (3-Way) |
| SCFM @ 100 PSI | 22 (2-Way), 5 (3-Way) |
| Working Medium | Air, Inert Gas, Liquid |
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F |
| Coil Voltage Options | 12VDC |
| Coil Locking Nut | M8 x 0.75 Threads |
| Wetted Surface | Anodized Aluminum (Valve Body), NBR (Buna N) Seal, Brass & Stainless Steel Armature Tube Assembly |
| Brand | STC Valve |
| Manufacturer Part | 3V1-1/8 |
| Size | 1/8″ |
Performance
| Operating Pressure | Vacuum (28″ Hg) to 115PSI (Proof Pressure of 150 PSI) |
|---|---|
| Operating Temperature | 23 to 176°F (-5 to 80°C) with non-freezing medium |
Connections
| Port & Mounting | Body Ported, 2-Way (2/2/1) or 3-Way (3/2/1), 2-Position, Spring Return, Horizontally Stacking (Hardware Included) |
|---|---|
| Port Size (NPT) | 1/8″ |
| Electrical Connection | DIN, Grommet |
