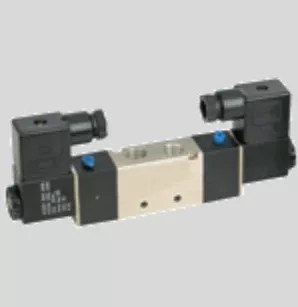

Technical Specifications
General
| Action & Motion | Air Pilot, Spool Design, Response Time <20ms |
|---|---|
| Cv | 1.68 |
| SCFM @ 100 PSI | 80 |
| Manual Override | Detentable (depress & rotate) |
| Working Medium | 40 micron filtered air or inert gas |
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F |
| Coil Voltage Options | 12VDC |
| Coil Power | 3 / 4.8W |
| Coil Locking Nut | M8 x 0.75 Threads |
| Wetted Surface | Anodized Aluminum, NBR (Buna N), Stainless Steel |
| Brand | STC Valve |
| Manufacturer Part | 3V320-3/8-1-D |
| Size | 3/8″ |
Performance
| Operating Pressure | 21 to 115PSI (Proof Pressure: 200PSI – leaks develop) |
|---|---|
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
Connections
| Port & Mounting | Body Ported, 3-Way, 2-Position, Double Solenoid |
|---|---|
| Port Size (NPT) | 3/8″ |
| Electrical Connection | DIN, Grommet |
