Technical Specifications
General

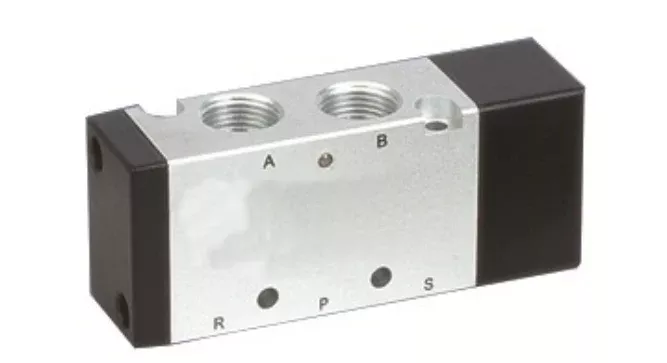

| Description | 4 Way 2 Position Single Pilot Air Valve |
|---|---|
| Action & Motion | Single Air Pilot, Spool Design |
| Working Medium | Pilot: 40 PSI |
| Cv | NBR (Buna N) |
| SCFM @ 100 PSI | 0 |
| Brand | STC Valve |
| Manufacturer Part | 4A410-1/2 |
| Size | 1/2″ |
Materials & Construction
| Body Material | 40 micron filtered air, inert gas |
|---|---|
| Seal Material | Anodized Aluminum |
Performance
| Operating Pressure | Valve: 0 to 115 PSI, |
|---|---|
| Maximum Pressure | 1/2″ NPT |
| Operating Temperature | 2.79 |
| Pilot Pressure | 160 |
Connections
| Port & Mounting | Body Ported |
|---|
