Description
Testo 560i Automatic Charging System with Digital Manifold Kit
A TruTech Tools Custom Kit built to charge AC systems

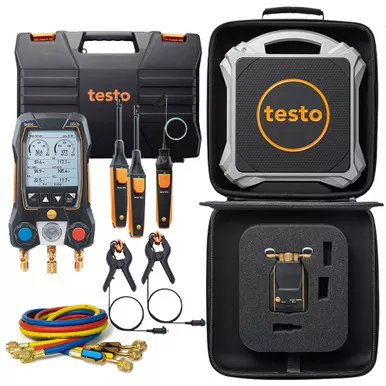

Kit Includes:
- (1) Testo 560i Automatic Charging System with Digital Scale, Intelligent Valve and Case
- (1) Digital Refrigerant Scale
- (1) Intelligent Valve
- (1) Shoulder Bag
- (4) AA Batteries
- (1) 9V Battery
- (1) Testo 550s Basic Kit – Smart Digital Manifold with Wired Temperature Probes
- (1) Testo 550s – Digital Refrigerant Manifold
- (2) Testo Wired Temperature Clamp Probes
- (1) Case
- (1) Calibration Certificate
- (1) Manual
- (1) Batteries
- (2) Testo 605i Humidity Smart Probe – 2nd Gen Long Range BlueTooth Probe
- (1) Testo 605i Humidity Smart Probe – 2nd Gen Long Range
- (3) AAA Batteries
- (1) Certificate of Calibration
- (1) Testo 915i Wireless Thermometer with Flexible TC Type K Temperature Probe
- (1) Testo 915i Bluetooth Probe Handle
- (1) Flexible 2.6ft Temp Probe
- (3) AAA Batteries
- (1) CPS HP5E 3-Pack of 5′ Premium Ball Valve Hoses
Testo 560i Automatic Charging System with Digital Scale, Intelligent Valve and Case
A revolutionary new way to automatically charge AC systems
The Testo 560i Digital Refrigerant Scale and Intelligent Valve revolutionizes the charging ofrefrigeration systems, ductless mini splits, and heat pumps. With the combination of the testo 560i Digital Scale,testo Intelligent Valve, a compatible digital manifold from Testo and/or the testo Smart App, you can chargerefrigeration systems, ductless mini splits, and heat pumps automatically, more quickly, and more precisely thanever before. You can choose from four automatic programs according to target superheat, subcooling, superheat, orrefrigerant weight. Simply select the charging program in the Testo manifold or testo Smart App, enter the targetvalue and the testo 560i Digital Refrigerant Scale and Intelligent Valve does the rest for you. Yourbenefits: Time saved to complete other tasks, as well as errorfree and precise charging of refrigerationsystems
The Digital Refrigerant Scale and Intelligent Valve automatically connects via Bluetooth to the manifold or the Appon your smartphone or tablet. This gives you flexibility even in confined environments. Thanks to the compact androbust housing, the low weight and the built-in carrying handle, the testo Automatic Charging System is extremelyportable.
Product Features
- Automatic and precise refrigerant charging according to target superheat, subcooling, andweight
- Wireless connection and operation with Testo digital manifolds and testo Smart App viaBluetooth
- See all measured values for the charging process, and store measurements in the testo Smart App
- Extremely portable thanks to compact housing, low weight, practical carrying handle and sturdyshoulder bag
- Compatible with testo 557s/550s/550i Smart Digital Manifolds, testo 557/550 Digital Manifolds(w/ Bluetooth), testo 115i/549i/605i Smart Probes, testo Smart App
- High measurement accuracy with resolution .02 lbs and output in lbs or kg
- High Bluetooth range of up to 100 ft
- Safe handling 3D corners for accurate positioning of the refrigerant container and texturedrubber surface for stable grip
- Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-offfunction
Testo 550s Basic Kit – Smart Digital Manifold with Wired Temperature Probes
All results at a glance thanks to the large graphic display!
The testo 550s digital manifold with 2-way valve block enables you to carry out your measurements on refrigeration,air conditioning systems, and heat pumps fast. The large display helps evaluate the results in graphic forms. Storedprograms guide you through measurements and enable the automatic determination of numerous important systemparameters such as superheating/subcooling, target superheat, cooling/heating capacity and many other areas.
Bluetooth probes for temperature, vacuum, and humidity can be easily connected and offer maximum flexibility in theirapplication. In conjunction with the testo Smart App, you can take care of digital documentation directly on site.Its proven quality and great durability guarantee the continuously high performance of your manifold in allconditions.
Note: Connects to 2nd generation smart probes only.
Features:
- Large graphic display for easy evaluation of the measurement results
- Stored programs guide you through the measurement and enable the automatic determination of important systemparameters, such as overheating, pressure drop testing or evacuation
- Uncomplicated handling and maximum flexibility in use: Optional bluetooth probes for temperature, pressure andhumidity automatically connect to the manifold
- Testo Smart App: full operation of service and maintenance tasks via app and smartphone or tablet, clearlyvisualized results, digital documentation, set your own favorites, always have the latest refrigerants available
- Continuously high performance under all conditions: You can rely on the testo 550s manifold – it combines provenTesto quality with a high level of ruggedness
- Rugged wired clamp probe set with integrated cable kink protection for quick and easy measurement of surfacetemperatures on pipes with a diameter of 6 to 35 mm
With the testo 550s Basic Kit you are ready to start immediately. The kit includes the smart testo 550s digitalmanifold including bluetooth and 2-way valve block, two wired clamp temperature probes (NTC) and a rugged transportcase. Optional bluetooth probes e.g. for wireless measurement of temperature and vacuum are available separately.
Testo 605i Humidity Smart Probe – 2nd Gen
NEW! Bluetooth range of up to 350 feet
The testo 605i Smart Probe thermo-hygrometer is a humidity and temperature measuring instrument that quickly andaccurately measures relative humidity, dew point, and temperature in rooms, ducts, registers, and environmentalboxes/chambers. Users can read the measurements using the testo Smart Probes App installed on their smart device.Smart Probes can be used individually or combined with other Smart Probes to create measuring solutions for mostHVAC/R applications. Great for setup and diagnostics of large and small HVAC/R systems! The testo 605i works onsmart devices with either Android or Apple operating systems.
The testo Smart Probes App is a powerful and easy-to-use tool. It allows you to remotely read measurements from up tosix (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap! All measurementdata is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excelfiles. The App creates custom reports which can be saved and/or shared by email. All your data can be stored andretrieved saving you hours of time consuming paperwork!
Features:
- Quickly and accurately measures relative humidity and temperature in rooms, ducts, and chambers
- Automatically calculates dew point & wet bulb temperature
- Bluetooth range of up to 350 feet
- NEWLY DESIGNED probe has a “knee joint” and folds to 90° for easier access into grilles with included casemagnet
- Small diameter probe is ideal for in-duct measurements
- Tough, accurate, and easy-to-use
- For all HVAC/R technicians and contractors
- Operates with iOS or Android smart devices such as smartphones, tablets, etc.
Testo 915i Wireless Thermometer with Flexible TC Type K Temperature Probe and Bluetooth Smartphone Operation
Wireless Temperature Measurement with Interchangable K Type Probes
The testo 915i thermometer with smartphone operation and Bluetooth is part of the popular testo Smart Probesportfolio. The thermometer provides fast, reliable measurement results and is versatile and easy to use thanks tothe flexible probe – making it ideal for carrying out your temperature measurements, e.g. at measuring locationsthat rigid probes cannot access. The testo 915i wireless thermometer with flexible probe will enable you to tackleyour temperature measurements with greater speed, flexibility and ease. For instance, the flexible thermocouple wirecan be laid through drill holes, gaps or door seals to measure the air temperature. The testo 915i automaticallyconnects to your smartphone/tablet or compatible testo measuring instrument via Bluetooth. The testo Smart Appfacilitates intuitive operation, clear display of measurement data as well as documentation and sending of reportson site. The handle is compatible with all standard type K thermocouple probes – making it versatile.
Features
- Expand your measuring capabilities with the Testo 915i Temperature Probe Kit which includes 3 additional K Type probes for the 915i (Air, Immersion, andSurface).
- Wireless temperature measurement in a wide range of applications, thanks to a large selection of probes andcompatibility with standard type K thermocouple probes
- Flexible, fast-response temperature sensor (TC type K, class 1) with fibreglass-coated cable (2.6 ft long) andsecure attachment via innovative locking mechanism in the handle, versatile, measuring range -58 to 752 °F
- Easy operation, evaluation and documentation with free testo Smart App as well as automatic Bluetooth connectionto smartphones, tablets or Testo measuring instruments (e.g. testo 400, testo 550s, testo 557s) with a range ofup to 328 feet.
- High measuring accuracy up to ±1.0 °F thanks to factory system calibration
- Innovative locking mechanism on the handle for easy, secure attachment of plug-in Testo measuring probes
CPS HP5E 3-Pack of 5′ Premium BV Hoses
Features:
- Compatible with CFC, HCFC, HFC refrigerants and blends
- Leak-proof 8-sided crimps
- Working pressure 800 (Psi)
- Burst pressure 4000 (Psi)
- Blow off grooves to prevent spray back
- Adjustable valve core depressor
- Extra deep knurling for easy grip
- Nylon permeation barrier (Meets SAE J2196)
Download the Testo Smart App for your Android or iOS devices today!
The testo Smart App guides you through measurements on refrigeration, air conditioning and heating systems and iscompatible with all Bluetooth-enabled Testo measuring instruments for air conditioning/refrigeration systemsand heat pumps! It ensures more mobile and easier measurement of temperature, pressure, humidity andair flow velocity than ever before.
App Features:
- All in one – All Smart Probes and Bluetooth-capable Testo measuring instruments forrefrigeration, air conditioning and heating systems and heat pumps combined in one App
- Quick and easy – Measurement menus for a wide range of applications facilitate quick and easyconfiguration and performance of the measurement
- Graph of values – Measured values are displayed in graphic form to enable quick reading of theresults
- Document and share – Easy creation of digital measurement protocols and documentation includingphotos as well as sending via e-mail
Specs
| Testo 560i Scale Technical Data | |
|---|---|
| Measuring range | 0.00 – 220.00 lbs. |
| Accuracy (71.6 °F, ± 1 digit) | @77°±5 °F only (angle of incline is about 0°): <= ±(.02 lbs+0.03% rdg) (0~66 lbs) <= ±(.02 lbs+0.05% rdg) (66~220 lbs) Other working temperature (angle of incline about 0°): <= ±(.04 lbs) (0~22 lbs) <= ±(.04 lbs +0.15% rdg) (22~220 lbs) |
| Resolution | 0.01 lbs. |
| Ambient humidity | 0 to 80 %rH |
| Connection | Bluetooth 4.2 |
| Bluetooth Range | 100 feet (free field) |
| Operating/Storage Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions | 12.2 x 11.3 x 2.3 in |
| Weight | 7.6 lbs. (incl. batteries and bag) |
| Protection class | IP44 |
| Battery type | 4 AA alkaline batteries |
| Battery life | > 70 h at 77 °F | Testo 560i Valve Technical Data |
| Maximum Working Pressure | 507 psi (35 bar) |
| Ambient humidity | 0 to 80 %rH |
| Connection | Bluetooth 4.2 |
| Bluetooth Range | >165 ft. (free field) |
| Operating/Storage temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions | 3.8 x 4.7 x 1.9 in |
| Weight | 1.2 lbs incl. batteries |
| Protection class | IP54 |
| Battery type | 9.0 V alkaline battery (6LR61) |
| Battery life | >60 hrs | Testo 550s Manifold |
| Pressure Range | -14 to 870 psi |
| Pressure Accuracy (at 72 °F) | ±0.5% fs |
| Pressure Resolution | 0.1 psi |
| Pressure Overload | 940 psi |
| Pressure Connection | 3 x 7/16″ – UNF |
| Temperature Range | -58 to 302 °F |
| Temperature Accuracy (at 72 °F) | ±0.9 °F |
| Temperature Resolution | 0.1 °F |
| Temperature Connection | 2 x plug-in (NTC) |
| Operating temperature | 14 to 122 °F |
| Storage temperature | -4 to 140 °F |
| Battery type | 4 AA batteries |
| Battery Life | 250 hrs with no illumination, no Bluetooth 100 hrs with illumination and Bluetooth |
| Auto power off | After 10 minutes when not connected via Bluetooth |
| Dimensions | 8.3 x 4.8 x 2.4 in |
| Weight | 1.8 lbs. |
| Protection class | IP54 |
| Bluetooth | Bluetooth 5.0 (500ft) |
| Compatibility | Requires iOS 11.0 or newer Android 6.0 or newer Requires mobile device with Bluetooth 4.0 |
| 605i Sensor type – Humidity – capacitive | |
| Measuring range | 0 to 100% RH |
| Accuracy | ±3.0 %RH (10 to 35 %RH) ±2.0 %RH (35 to 65 %RH) ±3.0 %RH (65 to 90 %RH) ±5 %RH ( 90 %RH) (at 77 °F) |
| Resolution | 0.1% RH |
| 605i Sensor type – NTC | |
| Measuring range | -4 to 140 °F |
| Accuracy | ±1.4 °F (-4 to 32 °F) ±0.9 °F (32 to 140 °F) |
| Resolution | 0.1 °F |
| 605i General technical data | |
| Compatibility | Requires iOS 8.3 (or later) Android 4.3 (or later) Requires mobile device with Bluetooth 4.0 |
| Storage temperature | -4 to 140 °F |
| Operating temperature | -4 to 122 °F |
| Battery type | 3 AAA Batteries (incl.) |
| Battery life | 150 hrs |
| Dimensions | 8.6 x 1.2 x 1.0 in Probe shaft: 2.9 in (L), 0.5 (dia.) |
| Warranty | 2 years |
| Measuring Units | °F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F, wetbulb °C | 915i Flexible Type K TC |
| Measuring range | -58° to 752 °F / -50 to +400 °C |
| Accuracy | ±1.8 °F (-22° to 176 °F) / ±1.0 °C (-30 to +80 °C) ±(1.3 °F + 1 % of mv) (-58° to -30 °F) / ±(0.7 °C + 1 % of mv) (-50 to -30 °C) ±(0.4 °F + 1 % of mv) (176° to 400 °F) / ±(0.2 °C + 1 % of mv) (+80 to +400 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| Reaction time | t90: 3 sec | 915i General technical data |
| Weight | flexible probe: 0.282 oz Bluetooth handle: 3.104 oz |
| Dimensions | 5.08 x 1.22 x 1.22 in. (LxWxH) |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| System requirements | requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Plug-in probe connection | Lockable connection to 4 testo 915i probes; Standard plug-in connection to other common TC probes |
| Flexible probe length | 2.6 ft. |
| Battery | 3 x AAA |
| Battery life | 150 h |
| Data transfer | Bluetooth; automatic connection to testo Smart App and Testo measuring instruments |
| Radio range | 328.08 ft. / 100 m |
