Description

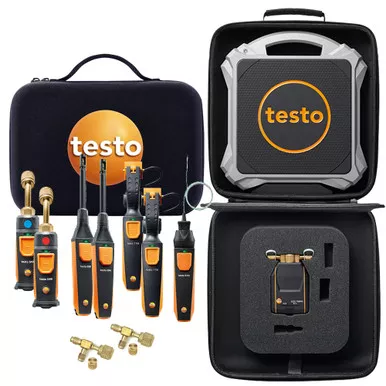

Testo 560i Automatic Charging System with Digital Manifold Kit
A TruTech Tools Custom Kit built to charge AC systems
Kit Includes:
- (1) Testo 560i Automatic Charging System with Digital Scale, Intelligent Valve and Case
- (1) Digital Refrigerant Scale
- (1) Intelligent Valve
- (1) Shoulder Bag
- (4) AA Batteries
- (1) 9V Battery
- (1) Testo Smart Probes AC / Refrigeration Capacity Test Kit-Long Range BlueTooth Probes
- (2) Testo 115i Pipe Clamp Thermometer Smart Probe – 2nd Gen
- (2) Testo 549i Refrigeration Pressure Smart Probe – 2nd Gen
- (2) Testo 605i Humidity Smart Probe – 2nd Gen
- (18) AAA Batteries
- (1) Testo HVAC Softcase
- (1) Certificate of Calibration
- (1) Testo 915i Wireless Thermometer with Flexible TC Type K Temperature Probe
- (1) Testo 915i Bluetooth Probe Handle
- (1) Flexible 2.6ft Temp Probe
- (3) AAA Batteries
- (2) CPS 1/4″ SAE Tee Valve Connector with caps
Testo 560i Automatic Charging System with Digital Scale, Intelligent Valve and Case
A revolutionary new way to automatically charge AC systems
The Testo 560i Digital Refrigerant Scale and Intelligent Valve revolutionizes the charging ofrefrigeration systems, ductless mini splits, and heat pumps. With the combination of the testo 560i Digital Scale,testo Intelligent Valve, a compatible digital manifold from Testo and/or the testo Smart App, you can chargerefrigeration systems, ductless mini splits, and heat pumps automatically, more quickly, and more precisely thanever before. You can choose from four automatic programs according to target superheat, subcooling, superheat, orrefrigerant weight. Simply select the charging program in the Testo manifold or testo Smart App, enter the targetvalue and the testo 560i Digital Refrigerant Scale and Intelligent Valve does the rest for you. Yourbenefits: Time saved to complete other tasks, as well as errorfree and precise charging of refrigerationsystems
The Digital Refrigerant Scale and Intelligent Valve automatically connects via Bluetooth to the manifold or the Appon your smartphone or tablet. This gives you flexibility even in confined environments. Thanks to the compact androbust housing, the low weight and the built-in carrying handle, the testo Automatic Charging System is extremelyportable.
Product Features
- Automatic and precise refrigerant charging according to target superheat, subcooling, andweight
- Wireless connection and operation with Testo digital manifolds and testo Smart App viaBluetooth
- See all measured values for the charging process, and store measurements in the testo Smart App
- Extremely portable thanks to compact housing, low weight, practical carrying handle and sturdyshoulder bag
- Compatible with testo 557s/550s/550i Smart Digital Manifolds, testo 557/550 Digital Manifolds(w/ Bluetooth), testo 115i/549i/605i Smart Probes, testo Smart App
- High measurement accuracy with resolution .02 lbs and output in lbs or kg
- High Bluetooth range of up to 100 ft
- Safe handling 3D corners for accurate positioning of the refrigerant container and texturedrubber surface for stable grip
- Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-offfunction
Testo Smart Probes AC / Refrigeration Test and Load Kit
NEW! Bluetooth range of up to 350 feet
The testo AC & Refrigeration test and load kit includes two testo 549i high-pressure measuring instruments, two testo605i thermohygrometers and two testo 115i clamp thermometers for pressure, (air) temperature and humiditymeasurement. In conjunction with a smartphone or tablet, the kit is ideally suited to servicing and troubleshootingon air conditioning and refrigeration systems, as well as their installation. The testo 549i and testo 115i can bequickly and easily attached directly at the pressure connection or the temperature measuring point. It is nowconsiderably easier to work at a longer distances, thanks to improved wireless connection to your smartphone ortablet.
The measuring values of both instruments are transmitted via Bluetooth to the testo Smart Probes App installed onyour terminal device enabling convenient and flexible readout there. In addition, the App enables automaticcalculation of evaporation and condensation temperatures as well as of heating/cooling capacity/output. Allmeasurement data is viewable either as a diagram or a table. Finally, the measurement data report can be e-maileddirectly as a pdf or Excel file.
Features:
- Measure high-side & low-side refrigerant pressure & temperatures (simultaneously) of AC/refrigeration systems
- Testo 549i now includes 45° angled hose connections
- Testo 605i now includes 90° foldable probe with built in attachment magnets
- NEW! Bluetooth range of up to 350 feet
- Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
- Calculate superheat and subcooling in the Smart Probe App
- Tough, accurate, and easy-to-use
- HVAC softcase holds the complete set of smart probes
- Operates with iOS or Android smart devices such as smart phones, tablets, etc.
Testo 915i Wireless Thermometer with Flexible TC Type K Temperature Probe and Bluetooth Smartphone Operation
Wireless Temperature Measurement with Interchangable K Type Probes
The testo 915i thermometer with smartphone operation and Bluetooth is part of the popular testo Smart Probesportfolio. The thermometer provides fast, reliable measurement results and is versatile and easy to use thanks tothe flexible probe – making it ideal for carrying out your temperature measurements, e.g. at measuring locationsthat rigid probes cannot access. The testo 915i wireless thermometer with flexible probe will enable you to tackleyour temperature measurements with greater speed, flexibility and ease. For instance, the flexible thermocouple wirecan be laid through drill holes, gaps or door seals to measure the air temperature. The testo 915i automaticallyconnects to your smartphone/tablet or compatible testo measuring instrument via Bluetooth. The testo Smart Appfacilitates intuitive operation, clear display of measurement data as well as documentation and sending of reportson site. The handle is compatible with all standard type K thermocouple probes – making it versatile.
Features
- Expand your measuring capabilities with the Testo 915i Temperature Probe Kit which includes 3 additional K Type probes for the 915i (Air, Immersion, andSurface).
- Wireless temperature measurement in a wide range of applications, thanks to a large selection of probes andcompatibility with standard type K thermocouple probes
- Flexible, fast-response temperature sensor (TC type K, class 1) with fibreglass-coated cable (2.6 ft long) andsecure attachment via innovative locking mechanism in the handle, versatile, measuring range -58 to 752 °F
- Easy operation, evaluation and documentation with free testo Smart App as well as automatic Bluetooth connectionto smartphones, tablets or Testo measuring instruments (e.g. testo 400, testo 550s, testo 557s) with a range ofup to 328 feet.
- High measuring accuracy up to ±1.0 °F thanks to factory system calibration
- Innovative locking mechanism on the handle for easy, secure attachment of plug-in Testo measuring probes
CPS 1/4″ SAE Tee Valve Connector – 2 Pack
Two pack of 1/4″ SAE Tee Connectors with cap and valve core. 1/4″ female knurl and 1/4″ SAE male connections.
Download the Testo Smart App for your Android or iOS devices today!
The testo Smart App guides you through measurements on refrigeration, air conditioning and heating systems and iscompatible with all Bluetooth-enabled Testo measuring instruments for air conditioning/refrigeration systemsand heat pumps! It ensures more mobile and easier measurement of temperature, pressure, humidity andair flow velocity than ever before.
App Features:
- All in one – All Smart Probes and Bluetooth-capable Testo measuring instruments forrefrigeration, air conditioning and heating systems and heat pumps combined in one App
- Quick and easy – Measurement menus for a wide range of applications facilitate quick and easyconfiguration and performance of the measurement
- Graph of values – Measured values are displayed in graphic form to enable quick reading of theresults
- Document and share – Easy creation of digital measurement protocols and documentation includingphotos as well as sending via e-mail
Specs
| Testo 560i Scale Technical Data | |
|---|---|
| Measuring range | 0.00 – 220.00 lbs. |
| Accuracy (71.6 °F, ± 1 digit) | @77°±5 °F only (angle of incline is about 0°): <= ±(.02 lbs+0.03% rdg) (0~66 lbs) <= ±(.02 lbs+0.05% rdg) (66~220 lbs) Other working temperature (angle of incline about 0°): <= ±(.04 lbs) (0~22 lbs) <= ±(.04 lbs +0.15% rdg) (22~220 lbs) |
| Resolution | 0.01 lbs. |
| Ambient humidity | 0 to 80 %rH |
| Connection | Bluetooth 4.2 |
| Bluetooth Range | 100 feet (free field) |
| Operating/Storage Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions | 12.2 x 11.3 x 2.3 in |
| Weight | 7.6 lbs. (incl. batteries and bag) |
| Protection class | IP44 |
| Battery type | 4 AA alkaline batteries |
| Battery life | > 70 h at 77 °F | Testo 560i Valve Technical Data |
| Maximum Working Pressure | 507 psi (35 bar) |
| Ambient humidity | 0 to 80 %rH |
| Connection | Bluetooth 4.2 |
| Bluetooth Range | >165 ft. (free field) |
| Operating/Storage temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions | 3.8 x 4.7 x 1.9 in |
| Weight | 1.2 lbs incl. batteries |
| Protection class | IP54 |
| Battery type | 9.0 V alkaline battery (6LR61) |
| Battery life | >60 hrs | 915i Flexible Type K TC |
| Measuring range | -58° to 752 °F / -50 to +400 °C |
| Accuracy | ±1.8 °F (-22° to 176 °F) / ±1.0 °C (-30 to +80 °C) ±(1.3 °F + 1 % of mv) (-58° to -30 °F) / ±(0.7 °C + 1 % of mv) (-50 to -30 °C) ±(0.4 °F + 1 % of mv) (176° to 400 °F) / ±(0.2 °C + 1 % of mv) (+80 to +400 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| Reaction time | t90: 3 sec | 915i General technical data |
| Weight | flexible probe: 0.282 oz Bluetooth handle: 3.104 oz |
| Dimensions | 5.08 x 1.22 x 1.22 in. (LxWxH) |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| System requirements | requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Plug-in probe connection | Lockable connection to 4 testo 915i probes; Standard plug-in connection to other common TC probes |
| Flexible probe length | 2.6 ft. |
| Battery | 3 x AAA |
| Battery life | 150 h |
| Data transfer | Bluetooth; automatic connection to testo Smart App and Testo measuring instruments |
| Radio range | 328.08 ft. / 100 m |
| Testo 115i | Testo 549i | Testo 605i | ||
|---|---|---|---|---|
| Sensor type | NTC | Pressure | Humidity – Capacitive | NTC |
| Measuring range | -58 to 302 °F | -14 to 870 psi | 0 to 100 %RH | -4 to 140 °F |
| Accuracy ±1 digit |
±2.3 °F (-4 to 185 °F) | 0.5 % of final value | ±3.0 %RH (10 to 35 %RH) ±2.0 %RH (35 to 65 %RH) ±3.0 %RH (65 to 90 %RH) ±5 %RH ( 90 %RH) (at 77 °F) |
±1.4 °F (-4 to 32 °F) ±0.9 °F (32 to 140 °F) |
| Resolution | 0.1 °F | 0.1 psi | 0.1 %RH | 0.1 °F |
| Clamp opening diameter | .25 to 1.5 in. | |||
| Connection | 7/16″ – UNF | |||
| Overload rel. | 870 psi | |||
| Battery life | 250 hrs | 150 hrs | 150 hrs | |
| Dimensions | 7.2 x 3.5 x 1.2 in. | 4.9 x 1.3 x 1.2 in | 8.6 x 1.2 x 1.0 in. 2.9 in probe shaft | |
| Measurable media | CFC, HFC, HCFC, N, H2O, CO2 | |||
| Measuring Units | °F, °C | bar, psi, MPa, kPa | °F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F / °C | |
| General Specifications | ||||
| Bluetooth Range | up to 350 ft | |||
| Storage temperature | -4 to 140 °F | |||
| Operating temperature | -4 to 122 °F | |||
| Compatibility | Requires iOS 8.3 (or later) / Android 4.3 (or later) | |||
| Requires mobile device with Bluetooth 4.0 | ||||
| Battery type | 3 AAA Batteries | |||
| Warranty | 2 years | |||
