Description

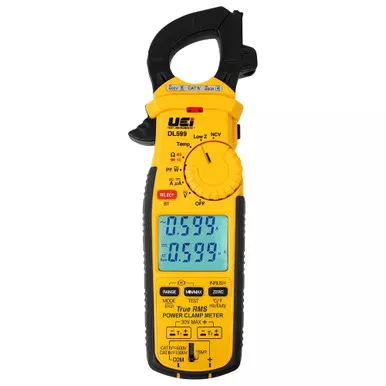

UEi DL599 True RMS Clamp Meter with Power Factor, 3 Phase Rotation, and Unbalanced Motor Testing
Need preventative motor maintenance testing in your Clamp Meter?
The DL599 is an award-winning wireless True-RMS HVAC/R clamp meter with preventative motor testing. Offering full HVAC functionality including advanced features like Power Factor, DC Amps, LRA Inrush, differential temperature and wireless connection to a free App for logging, graphing and emailing results.
Motor diagnostics includes 3-phase motor rotation test, unbalanced current and voltage test to determine a motor’s load efficiency, Low Z (impedance) to improve accuracy by reducing ghost voltages, and a Low Pass Filter to screen out unwanted higher frequencies from Variable Frequency Drives.
Included are CATIV rated silicone test leads, back probe leads for mini-split applications, a pair of alligator clips, two thermocouples, a zippered pouch, and backed by a 2-Year warranty.
Key Features & Benefits
- NEW – Power Factor
- NEW – Active Power (W)
- NEW – Apparent Power (VA)
- NEW – Reactive Power (VAr)
- 3-Phase Motor Rotation Indication
- Motor Unbalanced Test
- Low Pass Filter
- 1000V AC/DC
- 600A AC/DC
- 2000µA DC
- 60MΩ Resistance
- Capacitance 9999µF
- Diode/Continuity
- Min/Max/Avg
- Hold
- Visible high-voltage alert
- Auto Volts & Amp selection
- Backlit Dual Display and Worklight
- Built-in Magnet w/ hanging strap
- Auto/Manual ranging
- Input Jack Lock
- Battery compartment latches
- Test Lead Storage
- Over molded grip
- Auto calibration
- Auto Power Off
- Low Battery Indicator
Applications
- Easily identify if a system’s component is operating at peak efficiency or beginning to degrade
- Test 3-Phase motor rotation, unbalanced load, mini-splits, circuits in Molex plugs, and diode malfunctions
- Measures capacitance, voltage, microamps, circuit continuity, resistance, and temperature via K-Type thermocouples
- Flame sensing. Check system boards and live wires
