Description

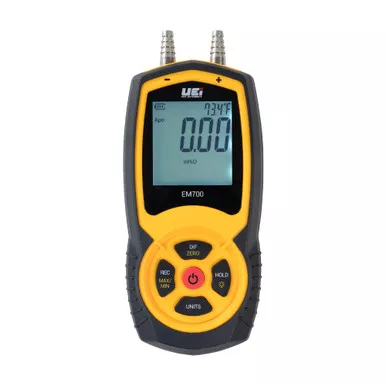

UEi EM700 Differential Pressure Manometer
Measure pressure differential quickly and accurately
The UEi EM700 is a differential manometer capable of capturing maximum and minimum pressure and calculating timed mean average pressure on selected interval. The EM700 features 11 different units of measure with a pressure range of -80 to 80 inH2O and a resolution of 0.01 inH2O. It can be used to measure differential pressure as well as draft, gas supply, manifold, and burner pressure. The manometer also features a large backlit display, ergonomic overmolded grip, and a magnetic mount for hands-free testing. EM700 includes pressure tubing, 2 nickel-plated brass gas valve adapters, and a padded case.
Key Features & Benefits
- Range ±80 inH2O
- Differential pressure
- Ambient temperature
- Easy-to-read backlit display
- Magnetic mount
- 11 units of measure
- Hold / MIN / MAX / AVG capture
- Auto power off
- Low battery indication
- Zero button
- 1-year limited warranty
Specs
| UEi EM700 Manometer Specs | |
|---|---|
| Range | ±80 inH2O |
| Accuracy | ±0.03 inH2O 3 inH2O |
| Resolution | 0.01 inH2O |
| Units of Measurement | bar, oz/in², psi, inHg, mbar, mmHg, Pa/kPa, kg/cm², inH2O, ftH2O, cmH2O |
| Certifications | CE, FCC, RoHS, REACH Compliant, UK CA |
| Warranty | 1-Year limited |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | 14 °F to 122 °F (−10 °C to 50 °C) |
| Operating Humidity | Max 80% RH to 88 °F (31 °C), decreasing linearly to 50% RH at 104 °F (40 °C) |
| Operating Altitude | Up to 2000 m |
| Over-range | “OL” is displayed |
| Auto Power Off (APO) | 30 minutes |
| Dimensions | 2.95 × 6.25 × 1.41 in |
| Weight | 0.65 lb |
| Rated Power | 4.5 VDC (3 × 1.5 VDC LR6 AA batteries) |
