Description

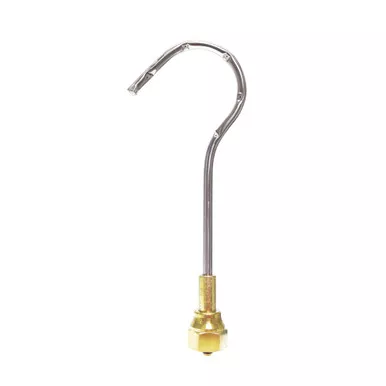

Uniweld MTF-5 Cap’n Hook Five Flame Brazing and Heating Tip, Brazes 1″ Copper, Oxyacetylene
The superior way to braze copper tubing — Up to 3x faster brazing
Uniweld’s Cap’n Hook® Five Flame Tip has a concentrated heat up to 5600°F. The 40 degree flame angle flows onto copper tubing and away from sensitive areas, thus minimizing the chances of burning adjacent components. Tip provides 100% flame wraparound of the copper tubing for even heat distribution. Capable of brazing 1 in. of copper. Tip elbow is made of tough, durable stainless steel to protect against bending with brass mixer, and brass nut. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
Key Features & Benefits
- 6 in. approximate tip length
- 4–6 SCFH acetylene consumption
- Capable of brazing 1 in. of copper
- Five flames with 100% wrap around heat for easy brazing of copper tubing
- Tip nut only requires hand tightening allowing for quick and easy changing of tips
- Fits the 71 handle or the WH550 handle
- Proudly Made in the USA and 100% Flame Tested
