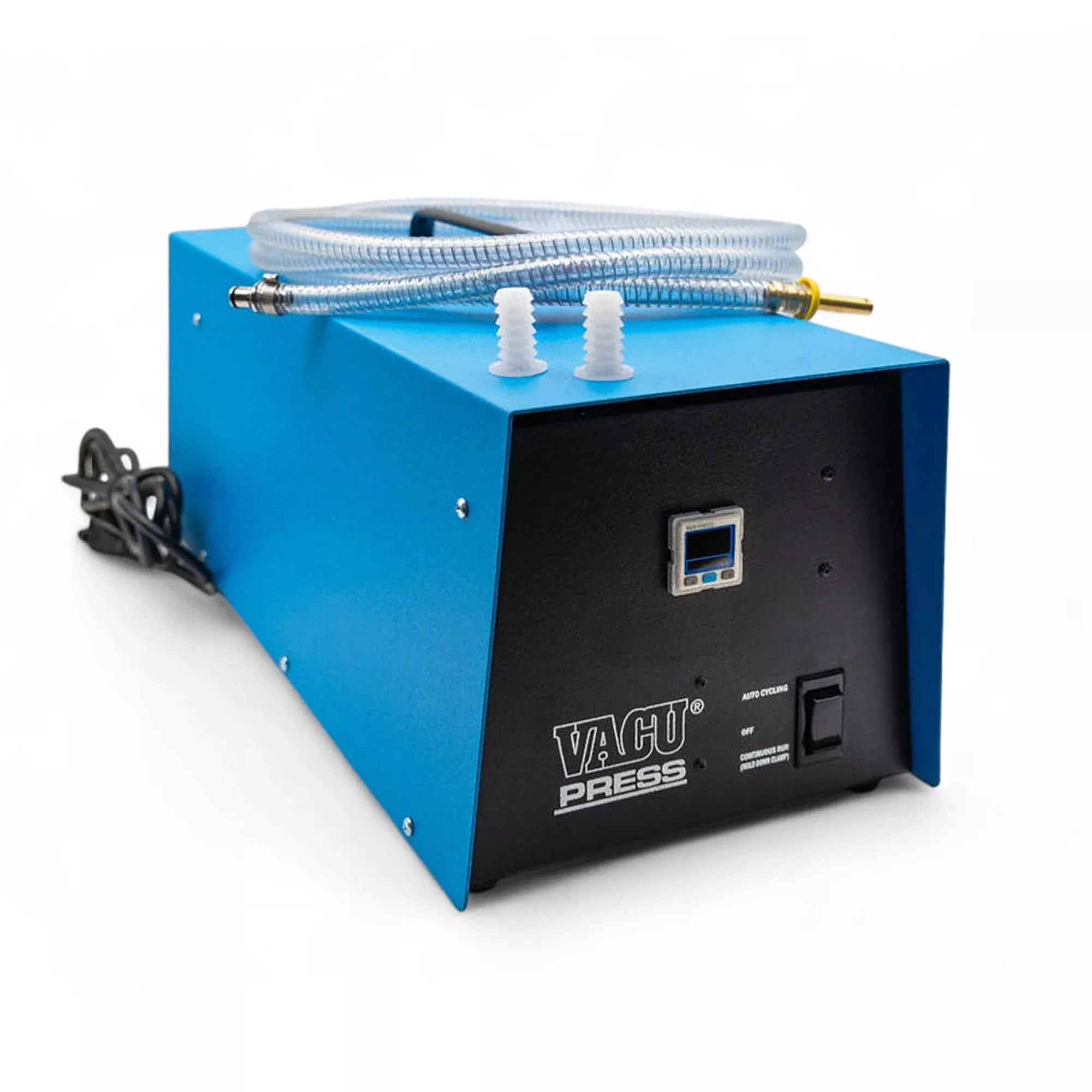

This is a heavy-duty 6 cfm vacuum pump. It’s a 1/3 hp 110 V rocking piston pump that can provide years of reliable service with little maintenance; quiet operation; and clean, oil-free exhaust.
It’s equipped with a precision digital vacuum switch with LED display that lets you easily set the pump to maintain the vacuum at a set range. Includes a 10 ft. air hose (with a quick disconnect on one end and a brass nipple bag connector on the other) and two platen sleeves. 1 year warranty.
Specifications
- 1/3 hp two chamber rocking piston oil-less vacuum pump with thermal overload protection
- Aluminum alloy vacuum chamber, prevents internal corrosion
- 6.5 cfm vacuum rate for short evacuation time
- Maximum vacuum 27″ HG / automatic shutoff at 25″ HG (1774 lb per sq. foot)
- Easy access, see through filter jar for dust removal
- Quick disconnect between pump and bag
- Precision digital vacuum switch with LED display. Easy to set turn on and turn off points
- Vacuum gauge and lighted on/off switch for monitoring vacuum process
- Dual power switch for both vacuum pressing and vacuum clamping
- Pump dimensions: 9-1/2″ W x 9-1/2″ H x 22″ L
- Weighs 50 lb
- Operators manual with complete instructions on pressing veneers, curved work, glues and vacuum clamping
- One-year limited warranty
